Configuring the Alarm through Controller

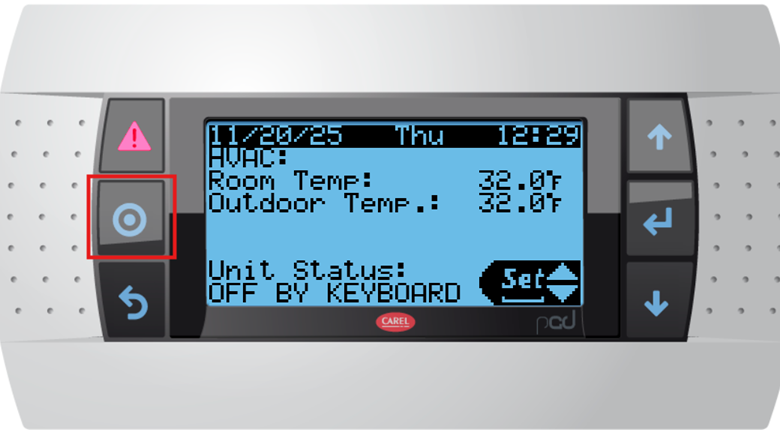

  1. Press Program button on the main menu

A digital screen with a blue screen AI-generated content may be incorrect.

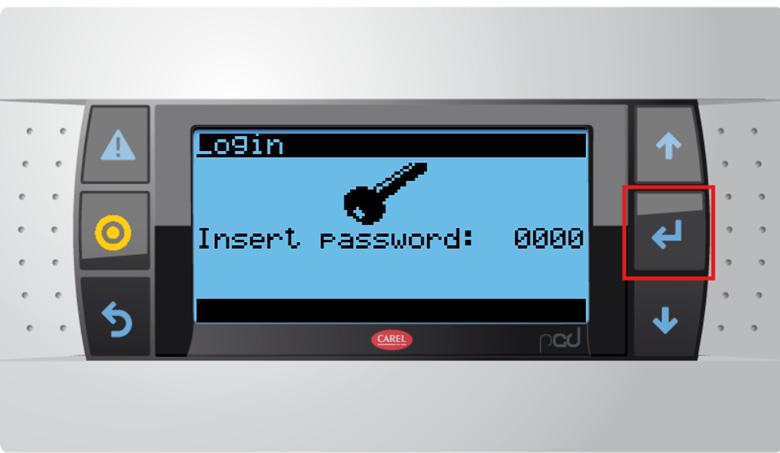

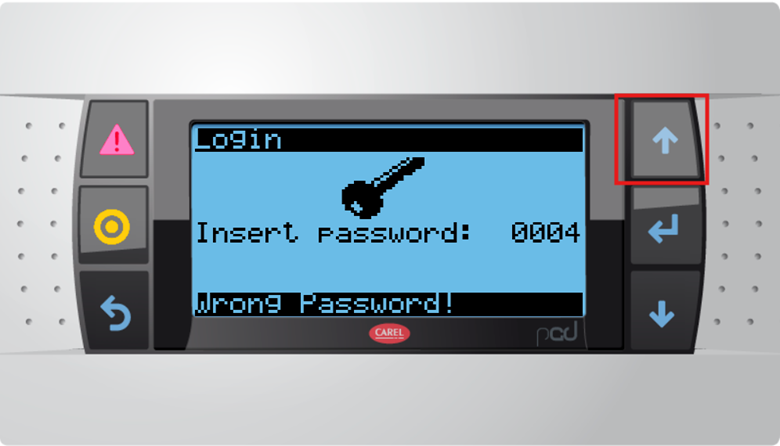

  1. Enter the passcode by using Enter button to navigate and Up/Down button to change number

A screen with a key and a key on it AI-generated content may be incorrect.

A screen with a key on it AI-generated content may be incorrect.

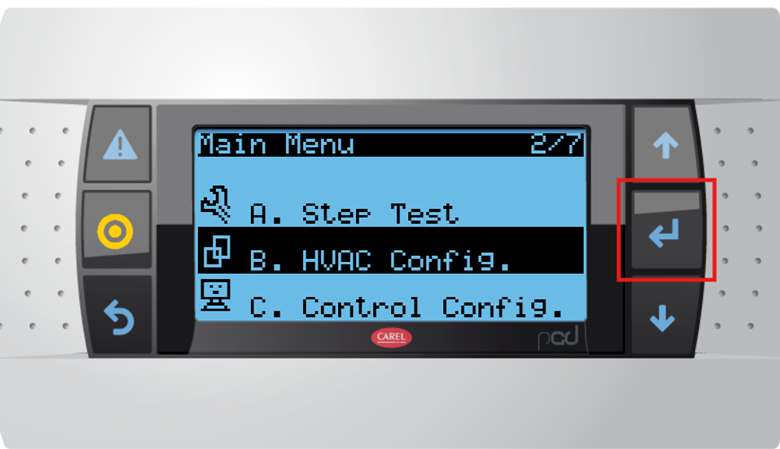

  1. After Entering the Passcode, Press Enter button.  Then Navigate to HVAC Config using Up/Down button and press Enter button.

A screen with text on it AI-generated content may be incorrect.

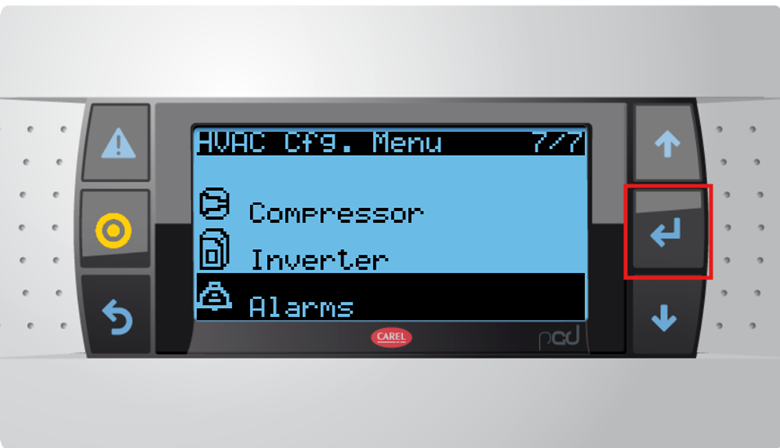

  1. Navigate to Alarm by pressing Up/Down button and then press Enter button.

A screen shot of a device AI-generated content may be incorrect.

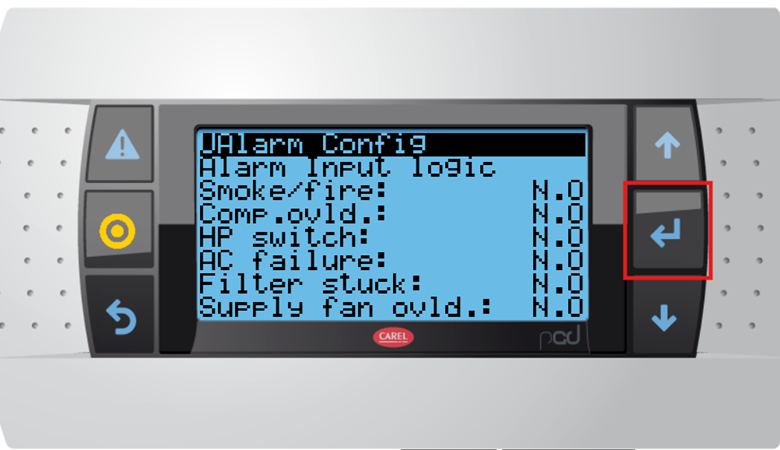

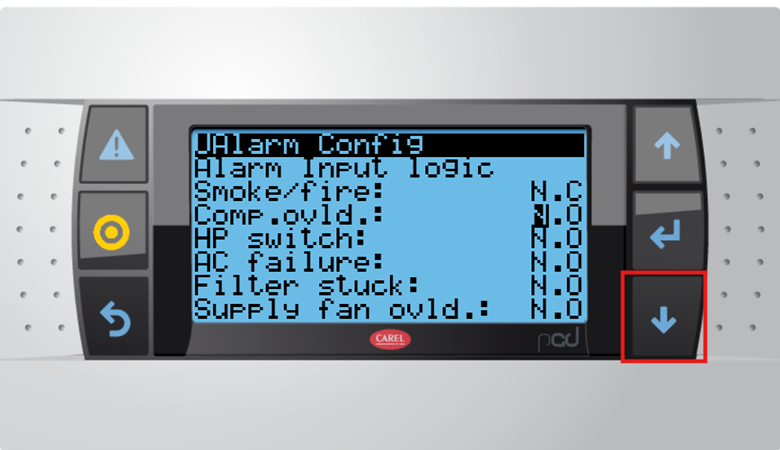

  1. Press Enter button and then press Down Arrow button to change NO to NC or NC to NO.

A screen shot of a computer AI-generated content may be incorrect.

A screen shot of a digital display AI-generated content may be incorrect.

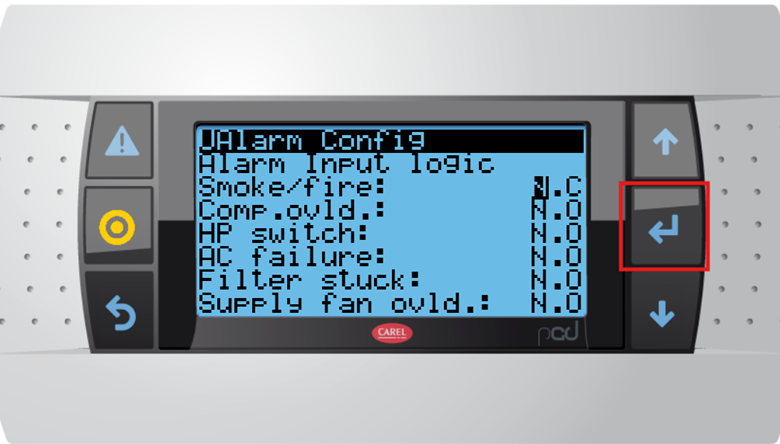

  1. After Configuring the Alarm state NO or NC press Enter button. If any Alarm state is not required to be changed, keep pressing Enter button.

A screen with text on it AI-generated content may be incorrect.

  1. Once configuration is complete press Back button until main screen.
