SUBJECT

Ordering Evaporator Coils for 3.5 Ton R407C Wall Packed Units


SCOPE

Service Contractors responsible for installation and repair.


BACKGROUND

The inlet stem location on evaporator coils for 3.5 Ton R407C units was changed to allow for better access during maintenance.  When ordering replacement evaporator coils, it is critical that you verify the inlet location on the failed evaporator coil before ordering.  If you order the incorrect evaporator coil, you will need to re-route the refrigeration lines.


DETAILS

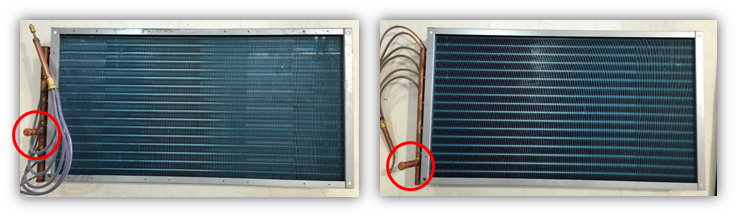

Prior to ordering a replacement evaporator coil, compare the stem location of the malfunctioning coil to the images below to determine the correct replacement part.



                                       Part # 2080220290                                                               Part # 2080401370









Feel free to contact us at ASNSupport@air-sys.com or (855) 874-5380 with any questions.
